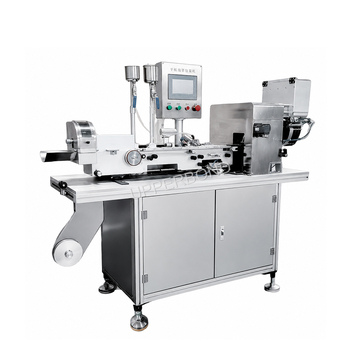

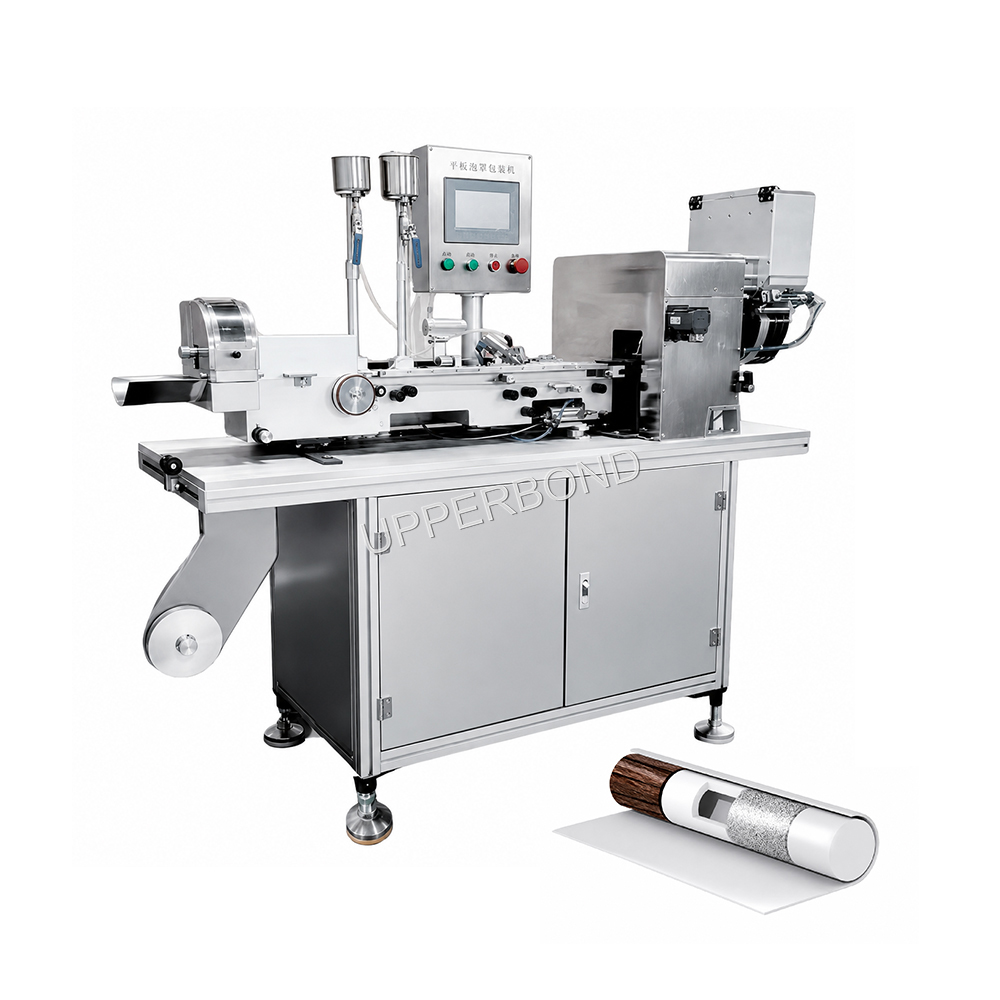

Lab combiner equipment is used to make Heat-Not-Burnstick sample for testing before mass production.
Capacity: 15 stick/min
Filter hopper unit: 4 pcsFilter hopper capacity: 150 pcs/hopper
Filter cutting length: 7-45 mm
Dimension: 1600*600*1600 mm
Equipment Parameters
Material Types: Tobacco shreds, bobbin paper, and glue
Production Capacity: Up to 100 cigarettes/min (adjustable speed)
Equipment Dimensions: 1600 x 500 x 1600 mm (L x W x H)
Power Specifications: Total 1KW, single-phase 220V
Cigarette Length Specification: Minimum length of 10 mm (adjustable via touchscreen)
Cutting Accuracy: ±0.3 mm
Standard Outer Diameter: φ7.8 mm (customizable)
Operating Temperature: 10℃ to 45℃
Operating Humidity: 95% RH
